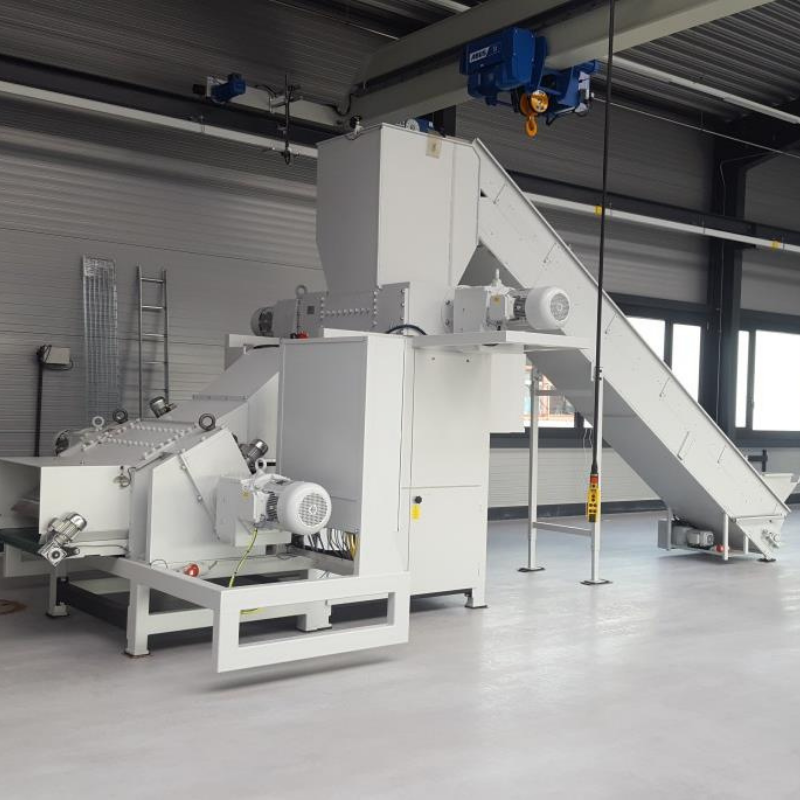

JBF DCM Series Industrial Paper Shredders

JBF DCM Series High Industrial Paper Shredders

  • Made in Germany
  • Direct connection of power supply to terminals by customer´s electrician
  • Compliant with DIN 66399 security level P3 (DC + DCM 600) or P2 (DC + DCM 800 + 1000)

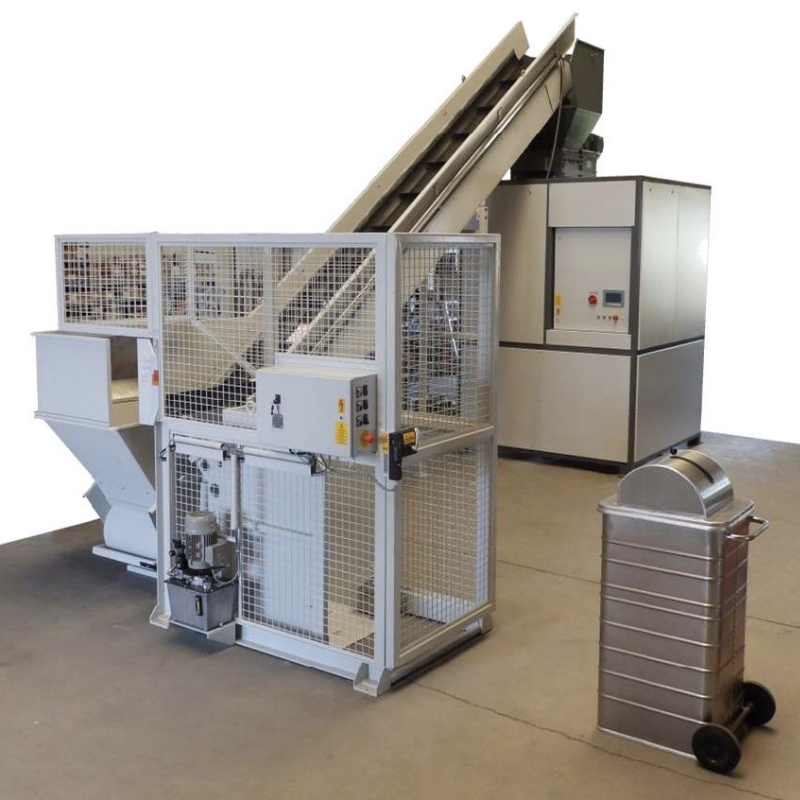

  • Standard feed conveyor provides for convenient feeding of large amounts of documents
  • Combination of a rugged primary shredder and a security shredder for creation of small particles
  • DCM machines feature a magnetic separator for automatic separation of ferrous magnetic metals ahead the security shredder
  • Handles thick computer printout lists and complete ring binders (suggested for DCM machines only)
  • Processes up to approx. 600 / 800 / 1,000 / 2000 / 3000 kg paper documents per hour
  • Handles small amounts of other data media like CD´s, DVD´s, floppy discs
  • Some units can be installed on a trailer for ultra-high volume mobile shredding services.
DCM Series Specifications

  • Voltage: 480V/3 Phase/60 Hz
  • Weight: 5000 – 8000 Kg

Model DC / DCM 600 DC / DCM 800 DC / DCM 1000 DC / DCM 2000 DC / DCM 2500
Primary Shredder
Motor Power 7.5kW 9.2kW 2 x 7.5kW 2 x 9.2kW 2 x 15.0kW
Working Width 380mm 380mm 380mm 700mm 700mm
Knife Width 30 30 30 40 40
Secondary Shredder
Motor Power 9.2kW 9.2kW 9.2kW 2 x 9.2kW 2 x 11.0kW
Working Width 500mm 500mm 500mm 730mm 880mm
Shred Output 6mm x 50mm 12mm x 55mm 12mm x 55mm 12mm x 55mm 12mm x 55mm
Throughput 600 kg/hr 850 kg/hr 1000 kg/hr 2100 kg/hr 3100 kg/hr
