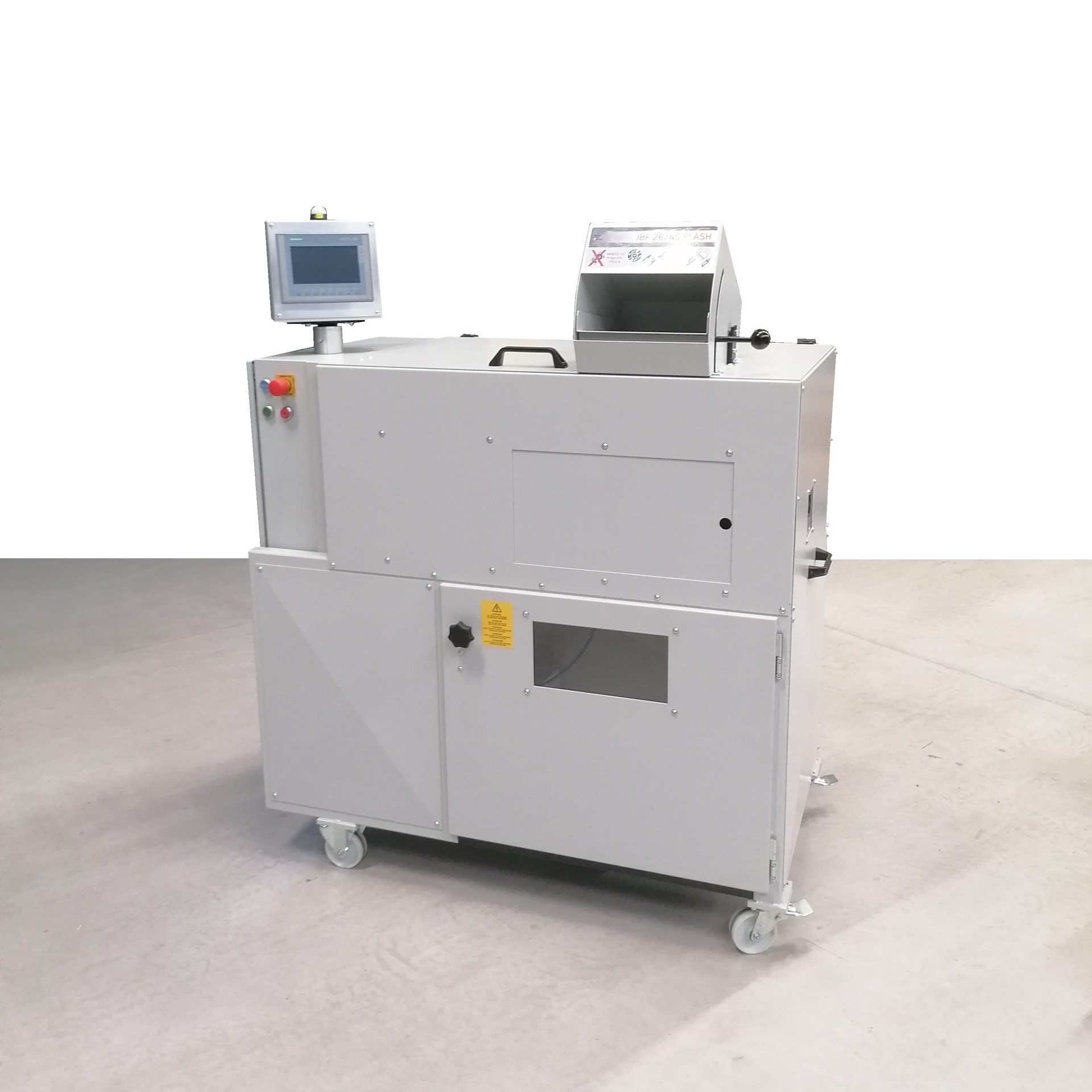

JBF 26/40 Flash

High Performance 2mm Solid State Drive Shredder

The JBF 26/40 Flash provides secure physical destruction of solid-state drives to 2mm maximum edge length.

  • 2mm destruction of solid state media including all SSDs (metal, plastic, composite)
  • Low RPM, high torque design for reduced downtime and maintenance vs disintegrators
  • Improved operator environment with low noise, low smell and low dust
  • Automatic jam detection prevents operator intervention and protects uptime
  • High volume decommissioning up to 180 metal cased SSDs/hour
  • HEPA vacuum with vertical bag connection and closure system reduces dust exposure
  • Available in international voltage/frequency combinations

The JBF 26/40 FLASH is designed to allow operation with limited training. It’s user interface guides the operator through the destruction process including prompts and interlocks to ensure suction systems, safety systems and feed systems are in operation and used correctly.  This operator support goes as far as locking out the feed funnel until the machine is ready for additional material, avoiding jams and eliminating the risk of incomplete media destruction. The machine was designed for 2mm secure destruction of solid state media including enterprise and standard SSDs

The 26/40 FLASH includes the Festool CT MIDI HEPA vacuum for particle removal.  This vacuum features vertical bag connection and an integrated bag closure virtually eliminating excess dust during bag changes.

The JBF 26/40 Flash meets all 2mm maximum edge length requirements. This machine is CSE ITSP 40.006 V2 capable.

Medium to High Volume

Applications

  • Enterprise SSDs
  • Standard Metal, Plastic and Composite SSDs
  • CD/DVD (when mixed with other media)
  • USBs (with heavy metal removed)
  • Cell Phones (recommended boards only)

Brand JBF
Model 26/40 Flash
Input Material SSDs, USBs, Flash Media
CSE ITSP 40.006 V2 Top Secret
Other Inputs CD/DVDs
Supply Voltage 208V/3Phase (international voltages available)
Motor Power 3.0 kW (4.0 hp)
Cutting Zone 260 x 400mm (10 1/4″ x 15 3/4″)
Operating RPM 13
Weight 760 kg (1672 lbs)
Dimensions (appox.) 1270 x 711 x 1545mm high (50 x 28 x 61″ high)
